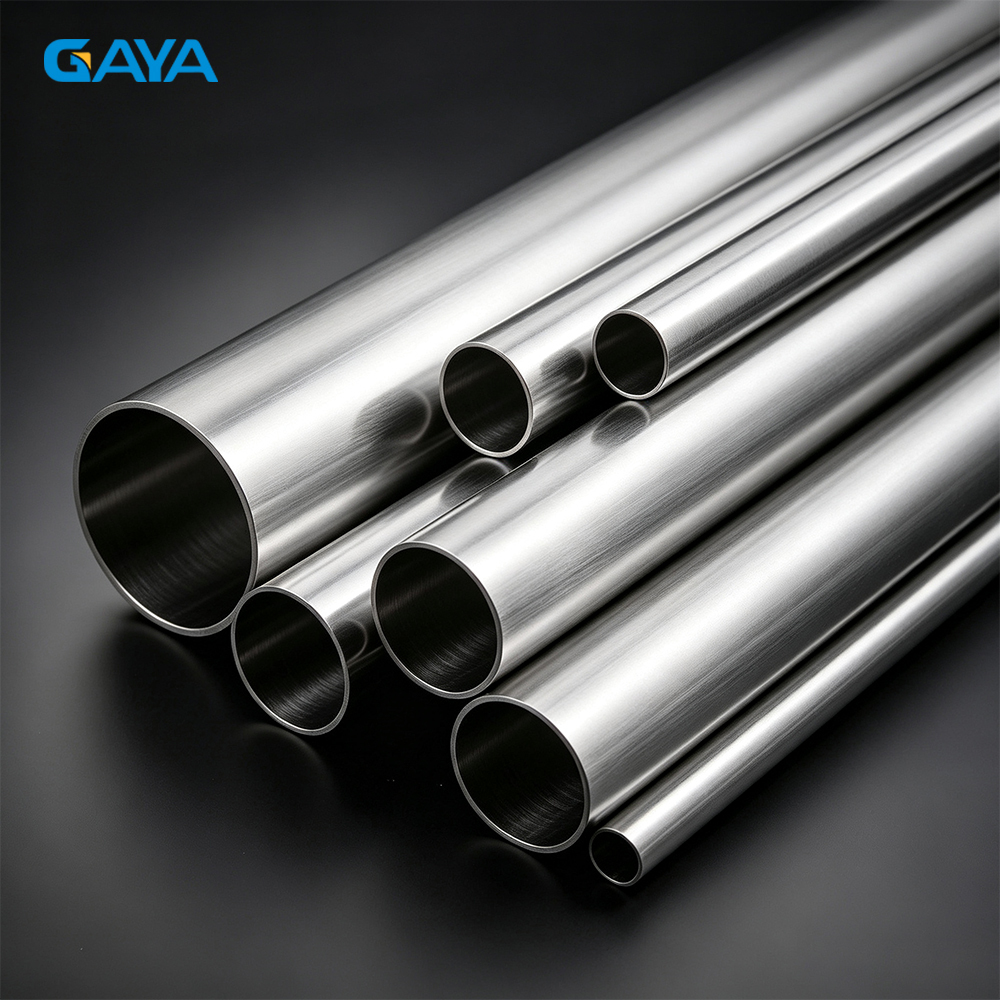

Stainless Steel Round Tubes

Name: Stainless Steel Round Tubes
Brand: GAYA Stainless Steel Co., Ltd | Stainless Steel Supplier&Manufacturer
Rating: 5 (1 reviews)

Stainless Steel Round Tubes from China factory

We are a stainless steel factory based in China with over ten years of experience in production and export. We primarily supply stainless steel tubes for decorative,industrial and Sanitary applications, offering a wide range of specifications and competitive pricing.

Material

201/304/304L/316/316L

Finish

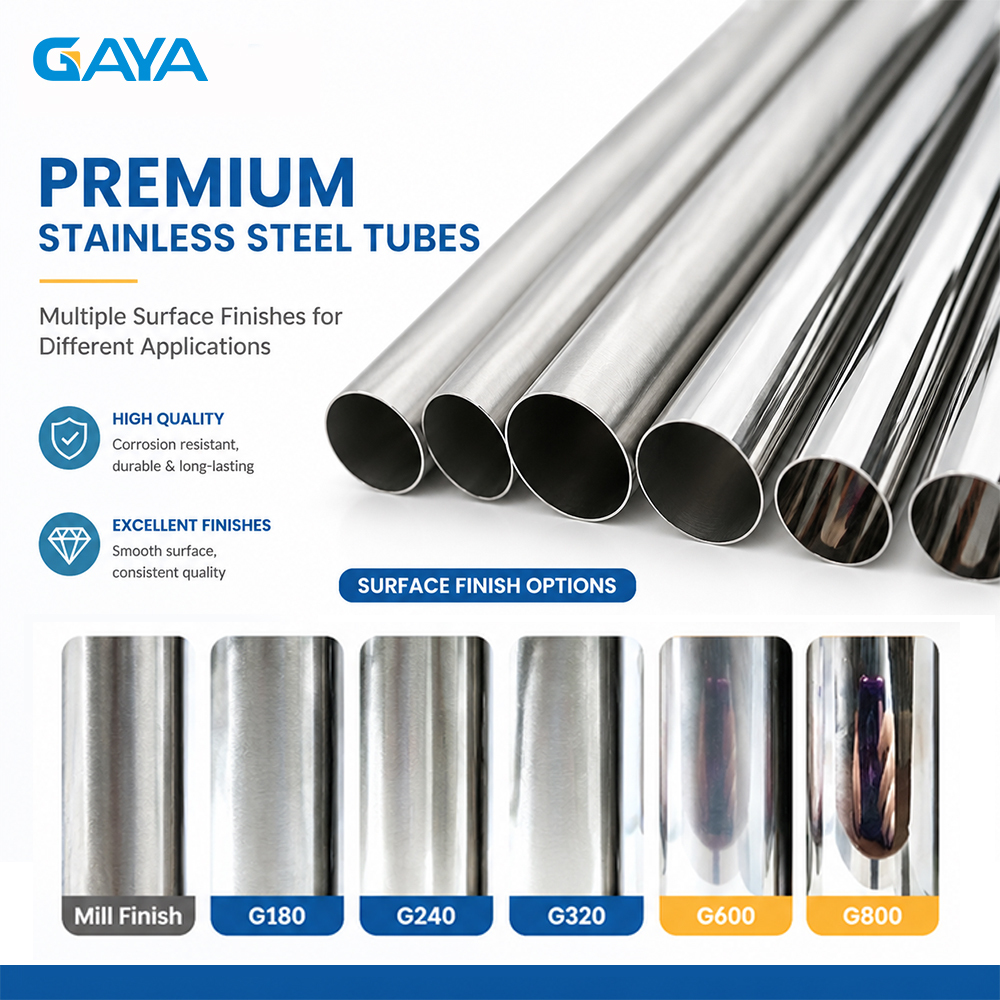

Mill/G180/G240/G320G/G600/G800

Standard

ASTM A554 (EN 10296-2) ASTM A312 (EN 10216-5 & EN10217-7) ASTM A270 (EN 10312 & EN 10217-7)

Length

Tube Types

Decorative, Industrial, Sanitary (Hygienic) stainless steel tubes

Application

Decorative,industrial and Sanitary

City

Foshan,China

GET A QUOTE

Size Specifications

Decorative Stainless Steel Tubes

Material:201/304/316 Standard:ASTM-A312 (EN 10296-2)

OD(mm) ↓ WT(mm) →	0.24	0.27	0.3	0.35	0.4	0.5	0.6	0.7	0.8	0.9	1	1.1	1.2	1.5	2	3	4	5
6.0
8.0
9.0
9.5
10.0
11.11
12.0
12.7
13.75
14.0
14.5
15.0
15.9
17.0
17.15
18.0
19.0
19.05
20.0
21.3
21.34
22.0
25.0
25.4
25.47
26.67
27.0
28.0
28.6
30.0
30.8
31.4
33.0
33.4
33.7
35.0
38.0
38.1
40.0
42.0
42.4
44.5
48.0
48.26
48.3
50.8
52.0
54.0
57.0
60.0
60.0
60.33
63.0
63.5
70.0
73.6
76.0
80.0
85.0
88.0
88.9
89.0
95.0
100.0
101.6
105.0
108.0
114.0
127.0
133.0
139.0
141.0
152.0
152.4
159.0
168.0
190.0
203.0
203.2
219.0
254.0
273.0
323.0

Industrial Stainless Steel Tubes

Material:304,304L,316,316L Standard:ASTM-A312(EN10216-5)

NPS Designator	Outside Diameter		Schedule 5S		Schedule 10S		Schedule 40S		Schedule 80S
NPS Designator	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
1/8	0.405	10.29			0.049	1.24	0.068	1.73	0.095	2.41
1/4	0.540	13.72			0.065	1.65	0.068	2.24	0.119	3.02
3/8	0.675	17.15			0.065	1.65	0.091	2.31	0.126	3.20
1/2	0.840	21.34	0.065	1.65	0.083	2.11	0.109	2.77	0.147	3.73
3/4	1.050	26.67	0.065	1.65	0.083	2.11	0.113	2.87	0.157	3.91
1.0	1.315	33.40	0.065	1.65	0.109	2.77	0.133	3.38	0.179	4.55
1 1/4	1.660	42.16	0.065	1.65	0.109	2.77	0.140	3.56	0.191	4.85
1 1/2	1.900	48.26	0.065	1.65	0.109	2.77	0.145	3.68	0.200	5.08
2	2.375	60.33	0.065	1.65	0.109	2.77	0.154	3.91	0.218	5.54
2 1/2	2.875	73.03	0.083	2.11	0.120	3.05	0.203	5.16	0.276	7.01
3	3.500	88.90	0.083	2.11	0.120	3.05	0.216	5.49	0.300	7.62
3 1/2	4.000	101.60	0.083	2.11	0.120	3.05	0.226	5.74	0.318	8.08
4	4.500	114.30	0.083	2.11	0.120	3.05	0.237	6.02	0.337	8.56
5	5.563	141.30	0.134	3.40	0.165	4.19	0.375	9.52
6	6.625	168.28	0.109	2.77	0.134	3.40	0.280	7.11	0.432	10.97
8	8.625	219.08	0.109	2.77	0.148	3.76	0.322	8.18	0.500	12.70
10	10.750	273.05	0.134	3.40	0.165	4.19	0.365	9.27	0.500	12.70
12	12.750	323.85	0.156	3.96	0.180	4.57	0.375	9.52	0.500	12.70
14	14.000	355.60	0.156	3.96	0.188	4.78
16	16.000	406.40	0.165	4.19	0.188	4.78
18	18.000	457.20	0.165	4.19	0.188	4.78
20	20.000	508.00	0.188	4.78	0.218	5.54
22	22.000	558.80	0.188	4.78	0.218	5.54
24	24.000	609.60	0.218	5.54	0.250	6.35
30	30.000	762.00	0.250	6.35	0.312	7.92

Material:304,304L,316,316L Standard:ASTM-A312(EN10217-7)

OD(mm) ↓ WT(mm) →	1.20	1.60	2.00	2.30	2.60	2.90	3.20	3.60	4.00	4.50	5.00	5.60	6.30	7.10	8.00	8.80	10.00
13.50
17.20
21.30
26.90
33.70
42.40
48.30
60.30
76.10
88.90
101.60
114.30
139.70
168.30
219.10
273.00
323.90
355.60
406.40

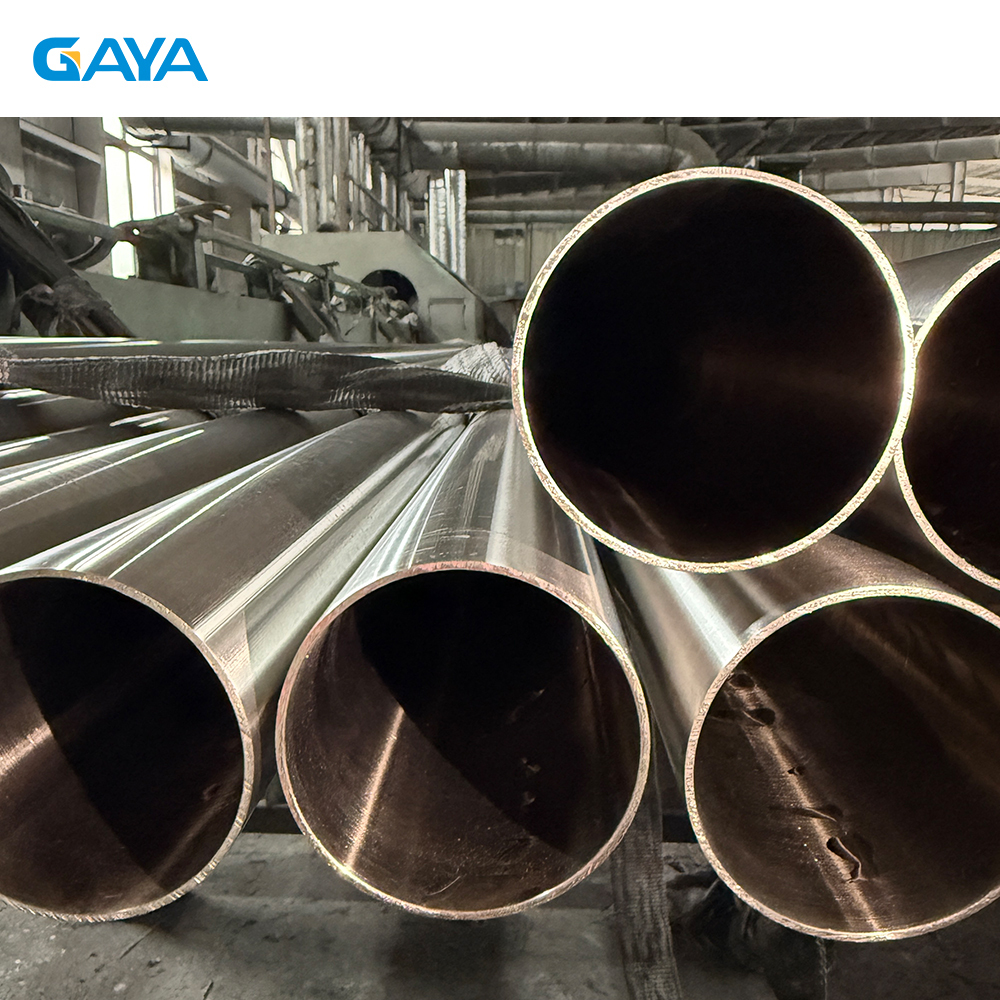

Sanitary Stainless Steel Tubes

Material:304,304L,316 Standard:ASTM-A270(EN10312)

Outside Diameter	Thickness range
24	0.56-2.0
25
25.4
26
27.3
28
29
31.8
32
33
34
35
36
38
40	0.8-2.5
41
42
42.7
45
48.6
50.8
52	1.0-2.5
53
54
57
60.3
63.3
66.7
70
76.2
85	1.2-2.8
86
88.9
101.6
104
108
114	1.3-2.8
127
129
133	1.6-3.0
152.7
154
159
165-168
219
